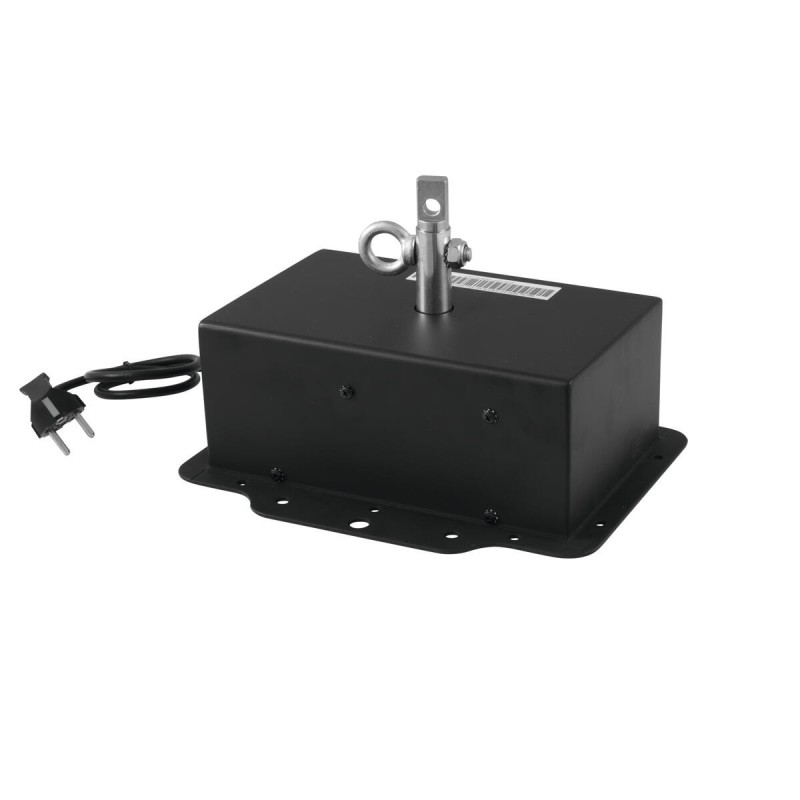

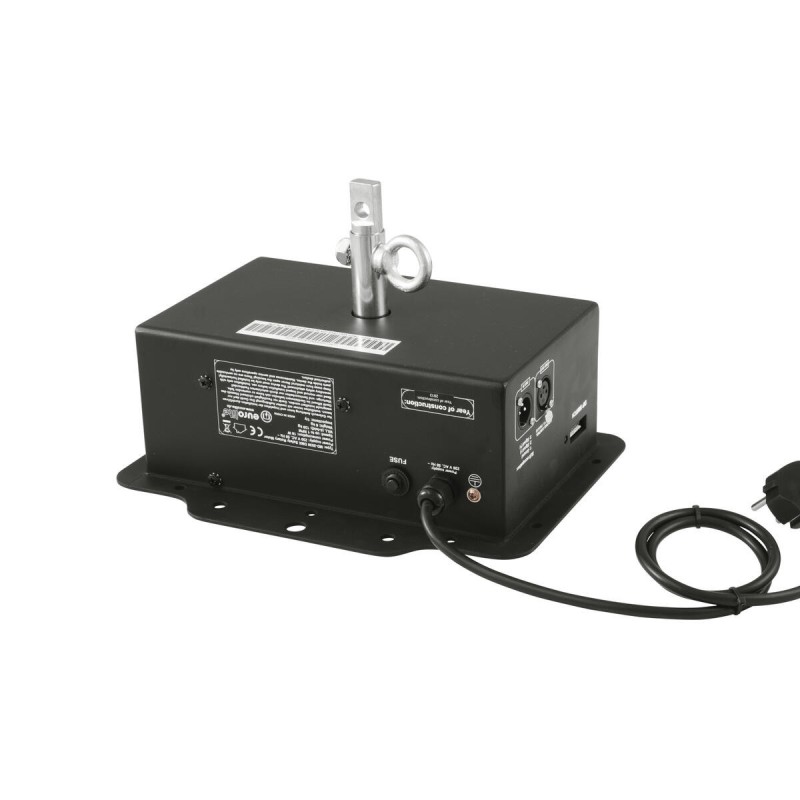

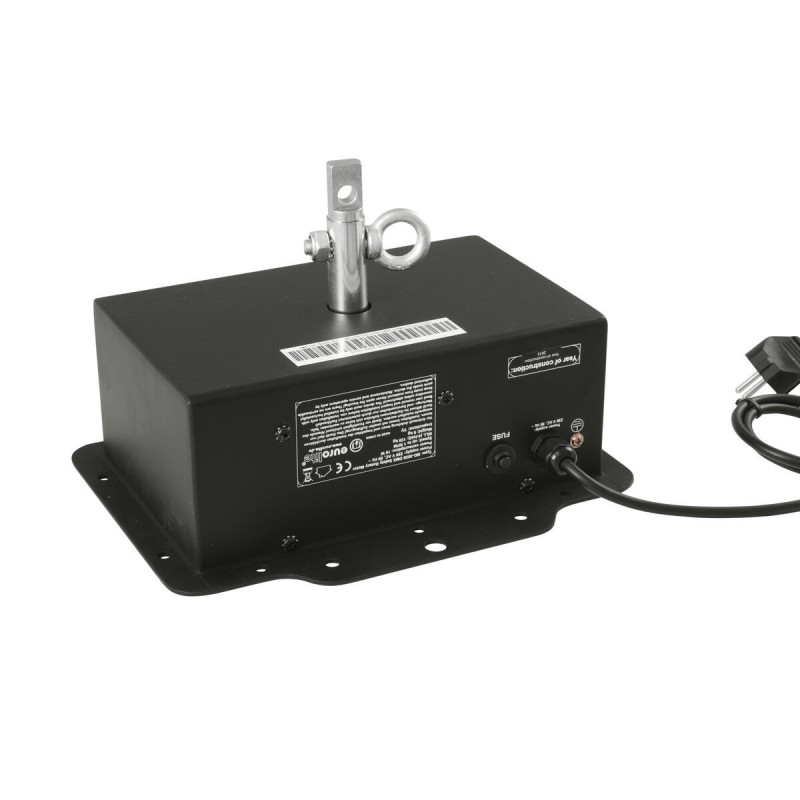

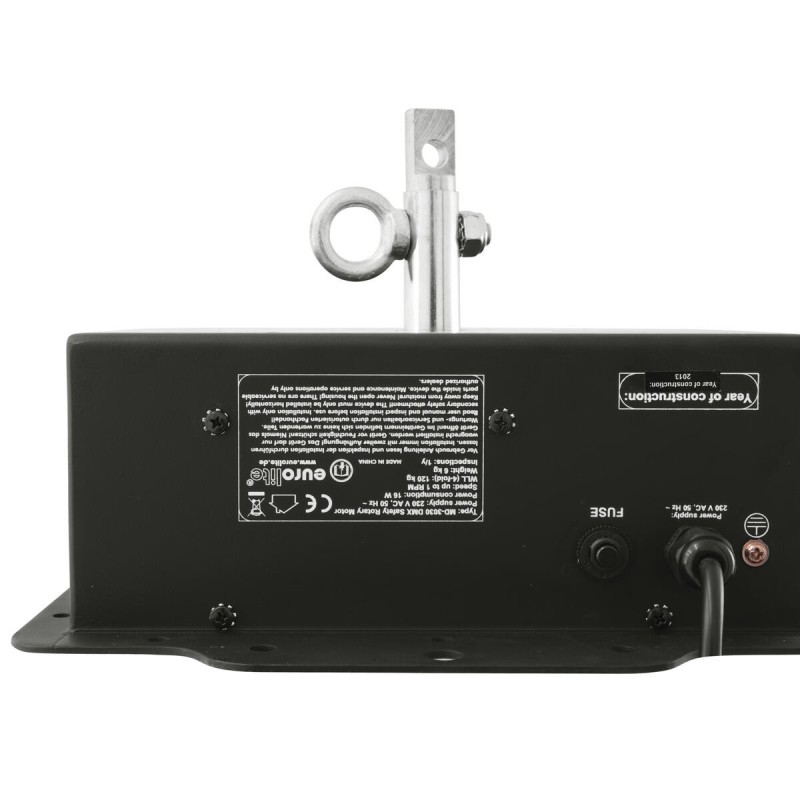

This sturdy mirror-ball motor can support a maximum load of 40 kg. That corresponds to a mirror ball of around 100 cm, with a 12× safety margin.
The motor speed is adjustable. This allows you to create gentle or faster effects.
To get the most out of these effects, you can add a spotlight to illuminate the mirror ball.
Direction of rotation and speed can be controlled via DIP switches or any commercially available DMX controller. For larger lighting installations, master/slave operation with multiple devices running in sync is also possible — no external control required.
The motor is equipped with a patented mechanical anti-fall protection in case the axle accidentally loosens, as well as the second eyelet required for fitting the safety chain. Each production batch undergoes strict quality control, making the motor suitable for nightclubs and other public events. The MD-3030 is delivered ready to use with a safety plug and a power cord.
- DMX-controlled motor for mirror balls up to 100 cm, up to 5 rpm.
- Maximum load always corresponds to the weight of the mirror ball, including chains and mounting hardware.
- 2 chains and 4 quick links must be ordered separately.
- The motor must always be installed with a secondary safety device.
- Before first use, the installation must be approved by an expert.
- Adjustable rotation speed; adjustable rotation direction.
- Control via stand-alone; DMX.
- Pre-programmed in LED PC-Control 512.
- Suitable for a mirror ball with a maximum diameter of 100 cm.
- Application areas: clubs / dance schools.
Technical specifications
Power supply: 230 V AC, 50 Hz
Power consumption: 5 W
IP rating: IP20
Protection class: Class I
Electrical connection: Fixed power cord with safety plug
Cable construction: 3 × 0.75 mm² H05VV-F
Cable length: Approx. 0.9 m
Fuse: Circuit breaker, 2.5 A
Speed: 0 rpm to 5 rpm forward/reverse
DMX channels: 1
Control: Stand-alone; DMX
Pre-programmed in: LED PC-Control 512
Maximum load: 40 kg
Maximum mirror-ball diameter: 100 cm (EUROLITE)
Housing colour: Matte black
Mounting hole diameter: 2 × Ø12 mm; 4 × Ø8 mm; 10 × Ø6 mm
Material: Metal, 3 mm
Dimensions: Width: 28.5 cm
Depth: 23.5 cm
Height: 19 cm
Weight: 6.20 kg
